TITANIA

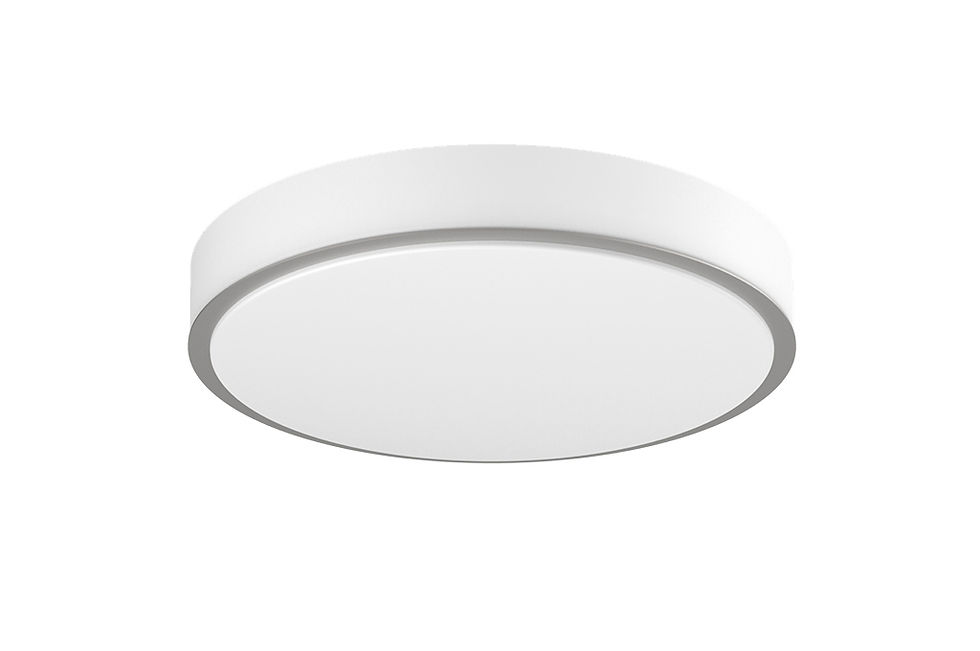

The Titania is a surface luminaire shaped like a slightly convex cylinder made of white, opal plastic with a decorative gray ring. A highly permeable, evenly illuminated PMMA diffuser that is resistant to yellowing. The illuminated ceiling effect around the luminaire is achieved thanks to the light-permeating vertical plane of the diffuser. The luminaire’s low glare rating makes it an excellent choice for offices. The color of the decorative ring can be specified by the customer. White-painted steel sheet housing. Suitable for surface mounting on ceilings or walls. Tool-free opening of the luminaire in the TWIST system. Three diameter variants allow for the luminaire to suit many different applications. L80 @ 68,000 hours. SDCM>3. CRI>80. UGR18.

TITANIA

1/1

PERFORMANCE DATA

PRODUCT CODE	DIMENSIONS (MM)	LENS	OUTPUT (LM)	POWER (W)	EFFICACY (LL/CW)	WEIGHT (KG)	IP/IK RATING	COLOUR TEMPERATURE (K)
EV-1955000AWXMR	500	opal	4600	45	102	3.5	IP 20	3000K
EV-1954000AWXLS	400	opal	2300	23	100	2.2	IP 20	3000K
EV-1954000AWXES	400	opal	2300	23	100	2.2	IP 20	3000K
EV-1955060AWXNR	500	opal	4600	45	102	3.5	IP 20	3000K
EV-1954000AWXDS	400	opal	2300	23	100	2.2	IP 20	3000K
EV-1954000AWXMS	400	opal	2300	23	100	2.2	IP 20	3000K
EV-1955000AWXER	500	opal	4600	45	102	3.5	IP 20	3000K
EV-1955000AWXFR	500	opal	4600	45	102	3.5	IP 20	3000K
EV-1950000N	300	opal	2200	18	122	1.3	IP 20	3000K
EV-1951000N	400	opal	3400	26	131	2.2	IP 20	3000K
EV-1952000N	500	opal	4600	39	118	3.5	IP 20	3000K
EV-1950100N	300	opal	2200	18	122	1.3	IP 20	4000K
EV-1951100N	400	opal	3400	26	131	2.2	IP 20	4000K
EV-1952100N	500	opal	4600	39	118	3.5	IP 20	4000K
EV-1950060N	300	opal	2200	18	122	1.3	IP 20	3000K
EV-1950160N	300	opal	2200	18	122	1.3	IP 20	4000K
EV-1951060N	400	opal	3400	26	131	2.2	IP 20	3000K
EV-1951160N	400	opal	3400	26	131	2.2	IP 20	4000K
EV-1952060N	500	opal	4600	39	118	3.5	IP 20	3000K
EV-1952160N	500	opal	4600	39	118	3.5	IP 20	4000K
EV-1959560AWYWR	500	opal	4600	45	102	3.5	IP 20	4000K

WALL + CEILING
